An effective, functional and sustainable solution with a high aesthetic value.
FREPAT Quai de Bus® Edging PMR accessibility – Edging in CorTen steel and concrete

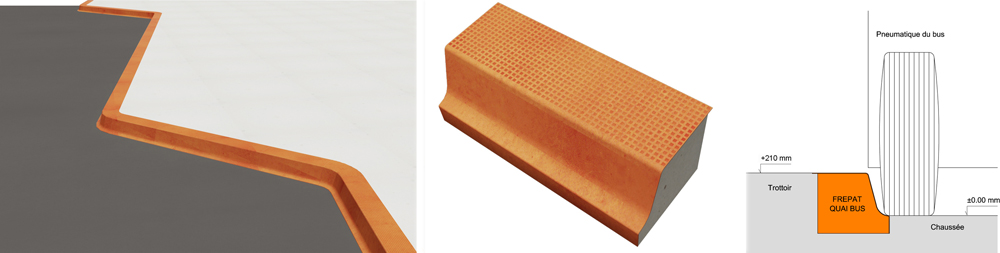

FREPAT QUAI BUS® is a border application specially designed for bus stops. The system combines two materials, CorTen steel and reinforced concrete, to obtain an aesthetic and functional solution at a time. Made by cutting and folding in 3mm CorTen steel and filled with concrete.Allows public transport vehicles to get as close to the platform as possible.
Accessibility for all

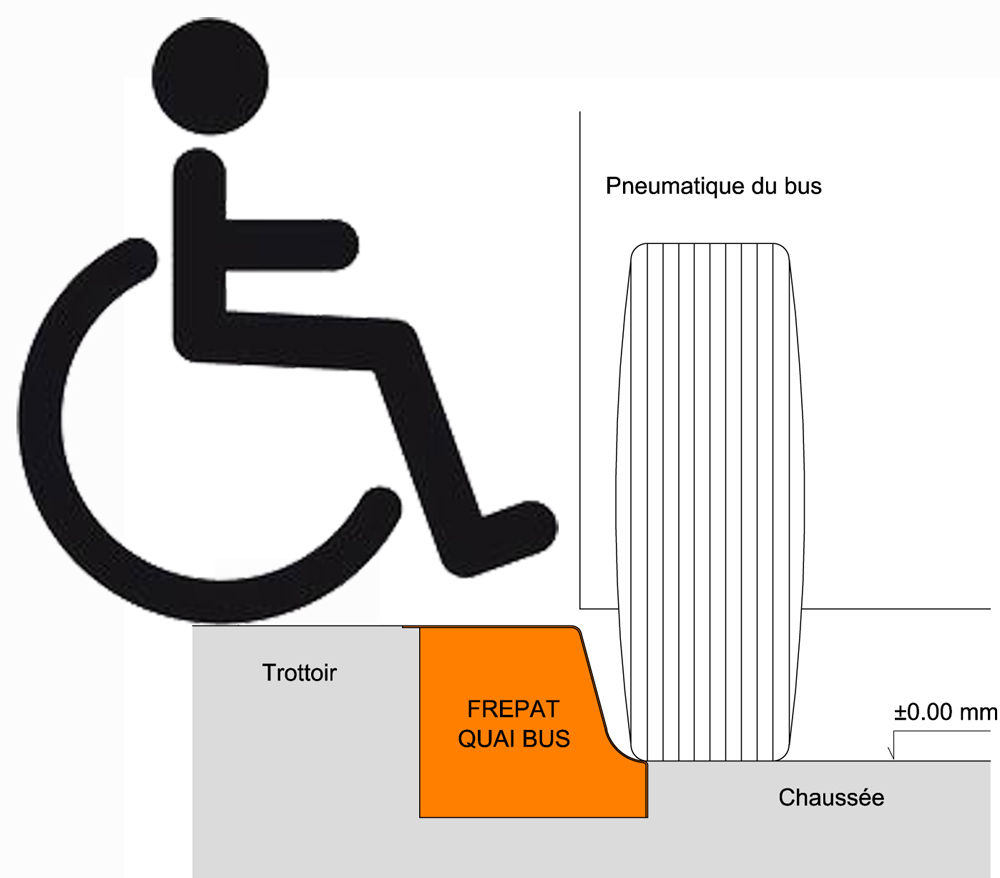

- FREPAT QUAI BUS® has been designed to minimize the horizontal and vertical “gaps” between the platform nose and vehicle doors, facilitating the use of public transport, especially for people with reduced mobility.
- The FREPAT QUAI BUS® EDGING is universal, fits all vehicles.
- The different elements (standard and fitting) allow the design of public spaces adapting to all terrains.
Security

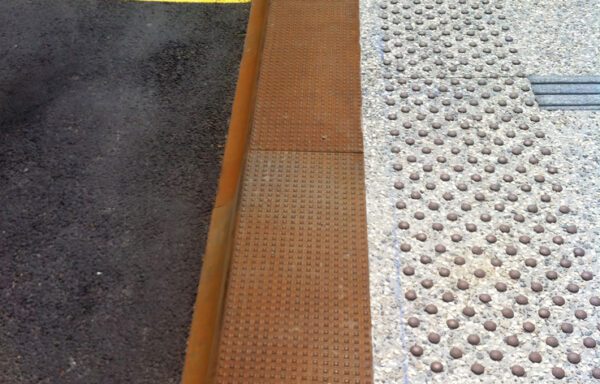

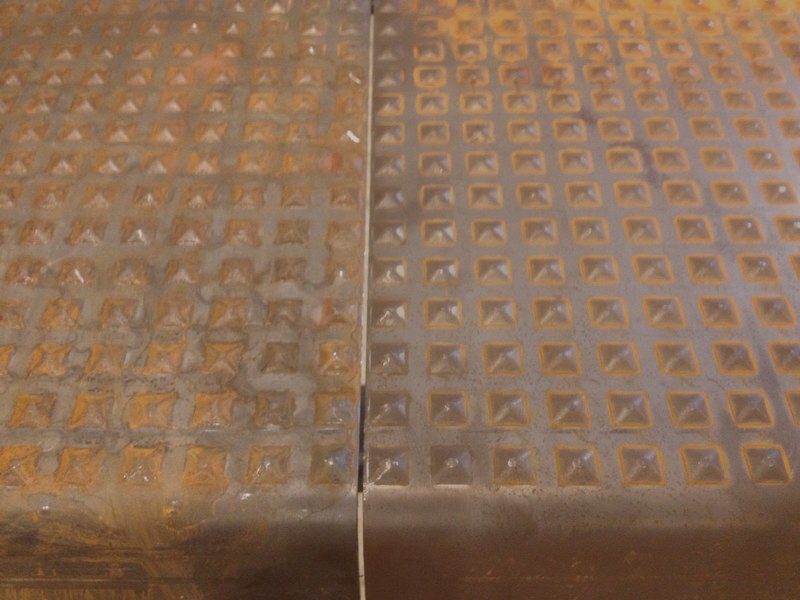

- The top of the Borders has been treated to provide a non-slip surface.

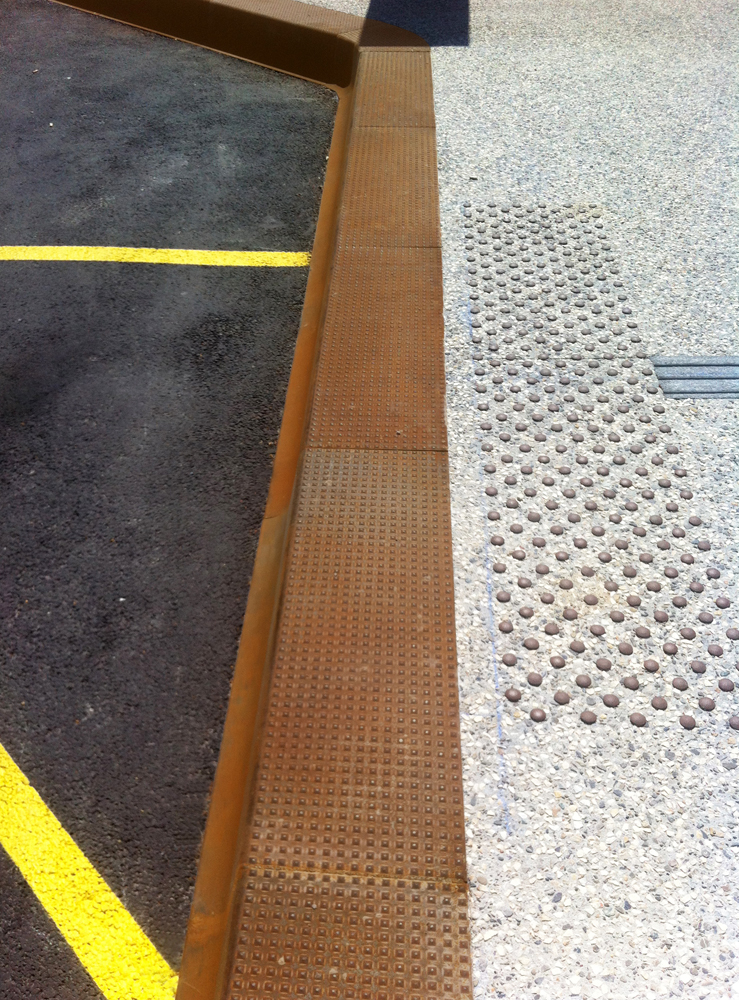

- The distinctive tone of CorTen steel ensures visual contrast for the visually impaired.
Ergonomic implementation and durability
- FREPAT QUAI BUS® edging: stable and strong thanks to the combination of the properties of these materials. The high mechanical strength of concrete and the enormous wear resistance of steel.
- FREPAT QUAI BUS® is a durable product that doesn’t requires maintenance.
- Each border is equipped with handling reservations to facilitate installation.
Quality and aesthetic value
- CorTen steel is a material increasingly used in public spaces due to its qualities combining durability and aesthetics.
RANGE OF ELEMENTS:

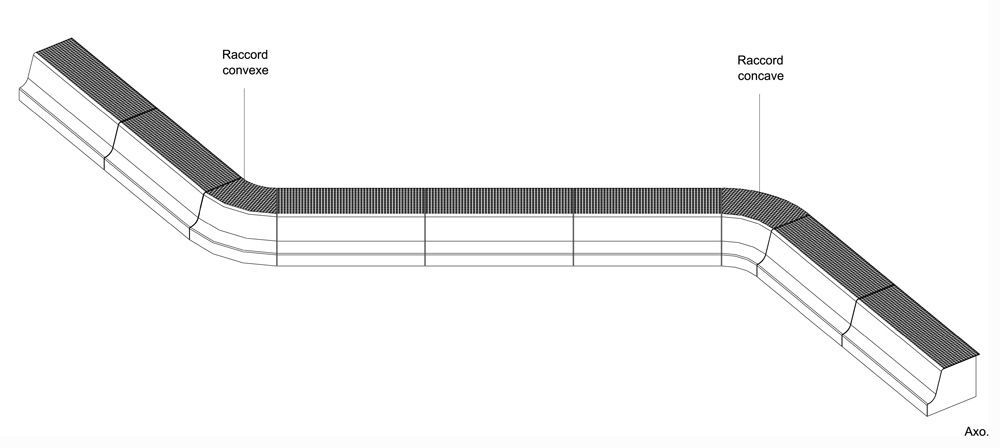

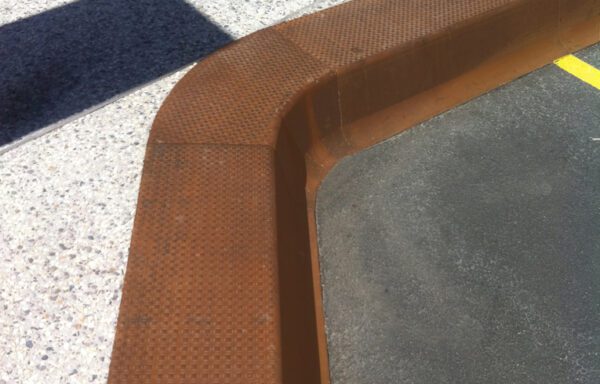

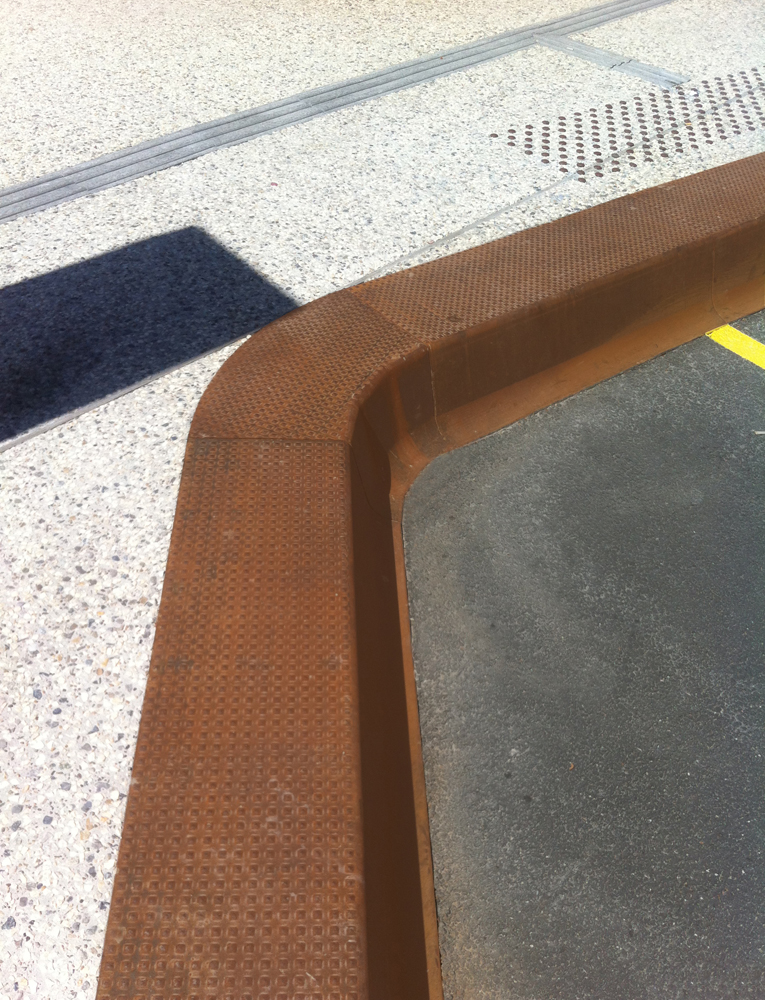

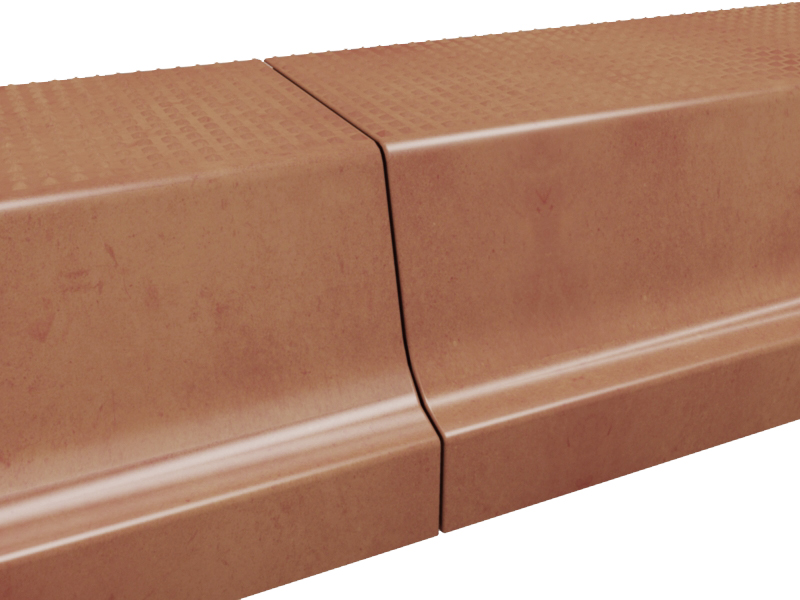

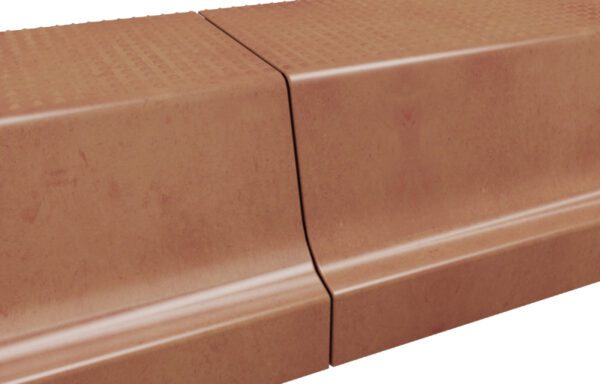

The system is composed of straight pieces and “concave” and “convex” pieces of connection for the changes of direction, which makes it possible to adapt the different tracings. The standard dimension of straight borders is 1ml. The sizes of the “special” connection pieces are manufactured according to the site.
The materials used in our manufacturing comply with all technical requirements and French and European legislation.
- SteelCorTen steel – diamond slip point V EN 12533: 2003 CLASS 3 Rd 55 (slip resistance)
- COR-TEN steel is a special steel resistant to wear and weather influences.
- Concrete HAC40 IIa B12.Particular special benefits for the industrial use and there where we look for prefabricated elements with a maximum resistance.
Corten steel together with reinforced concrete make FREPAT QUAI BUS® Borders a durable and high quality product that is unalterable over time and highly resistant to adverse weather conditions.

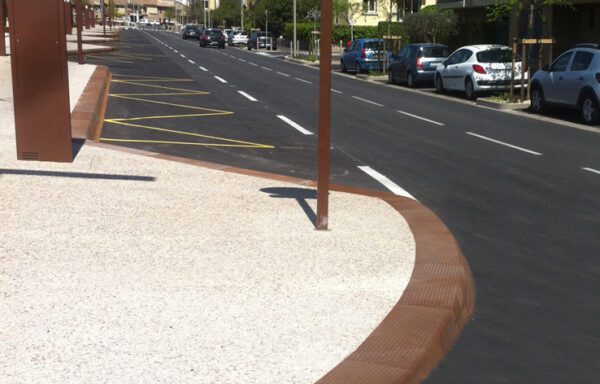

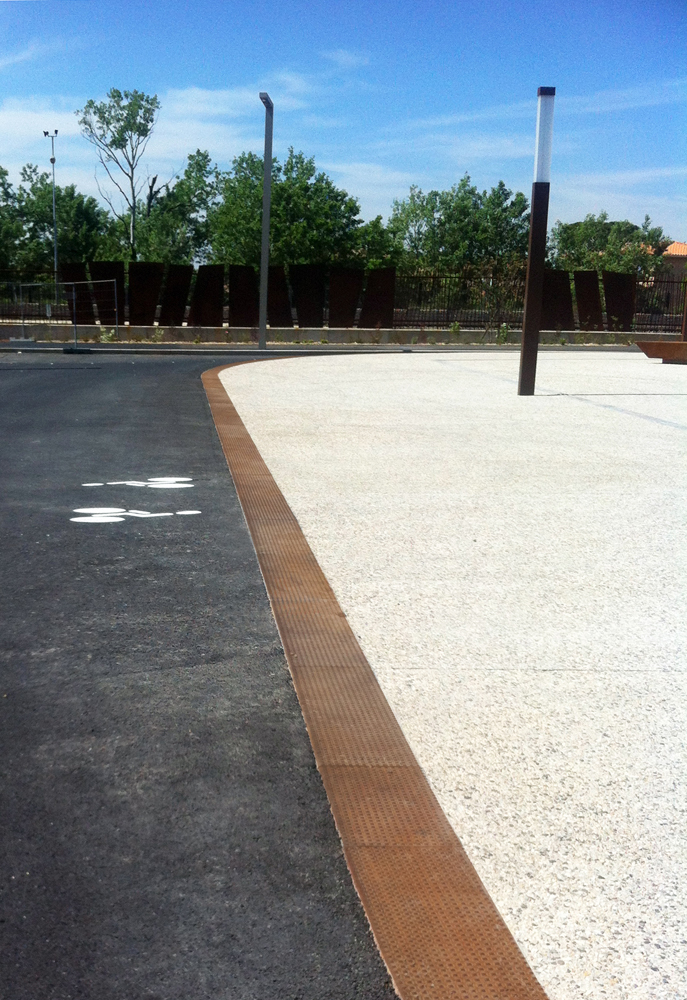

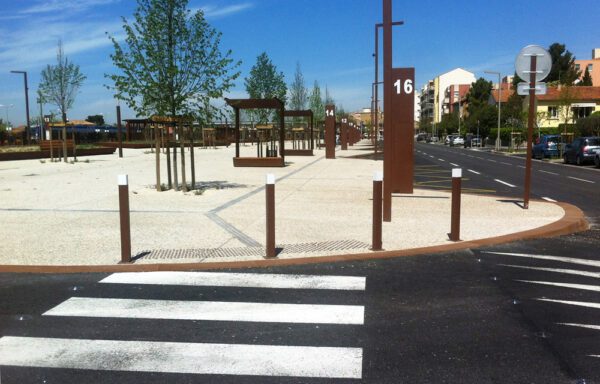

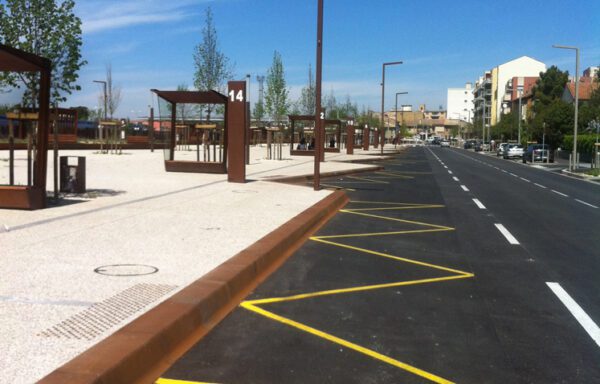

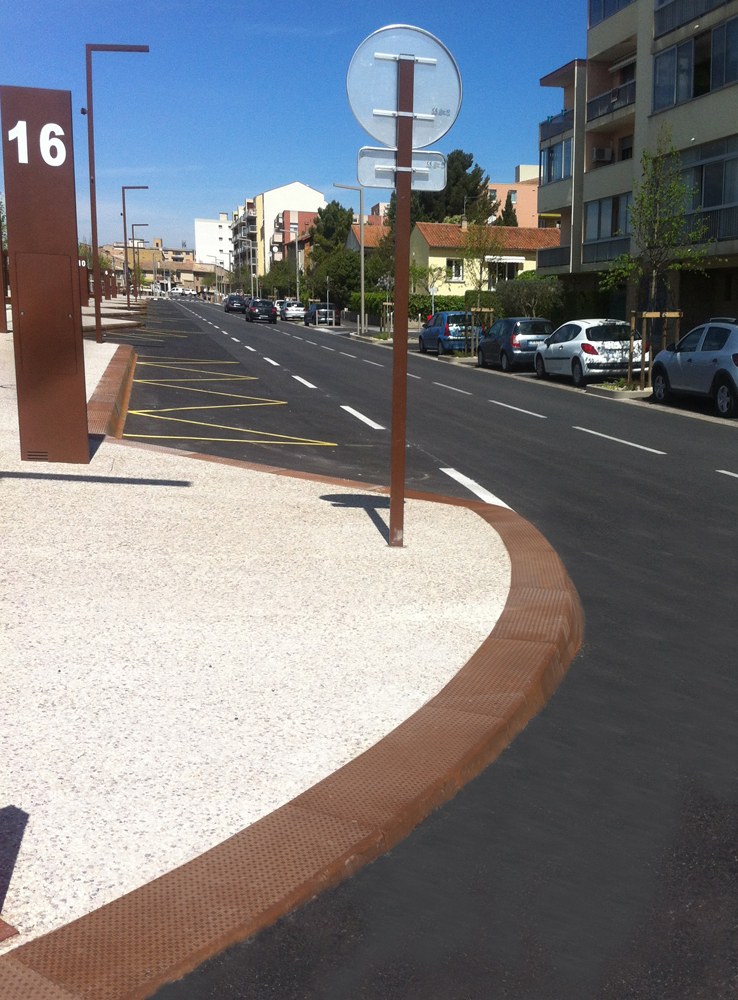

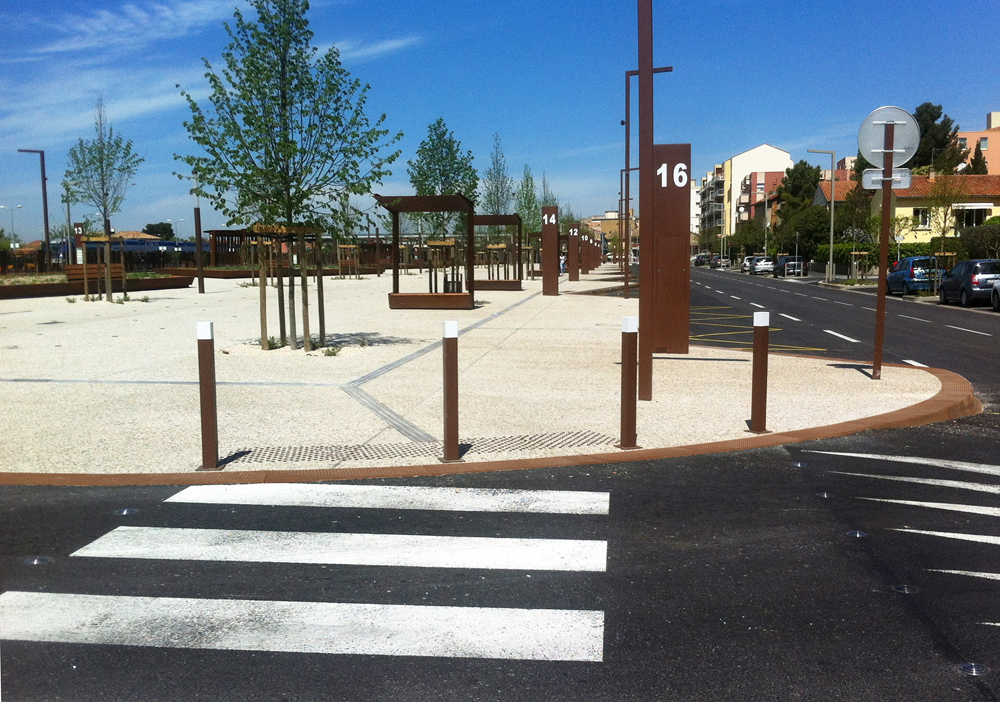

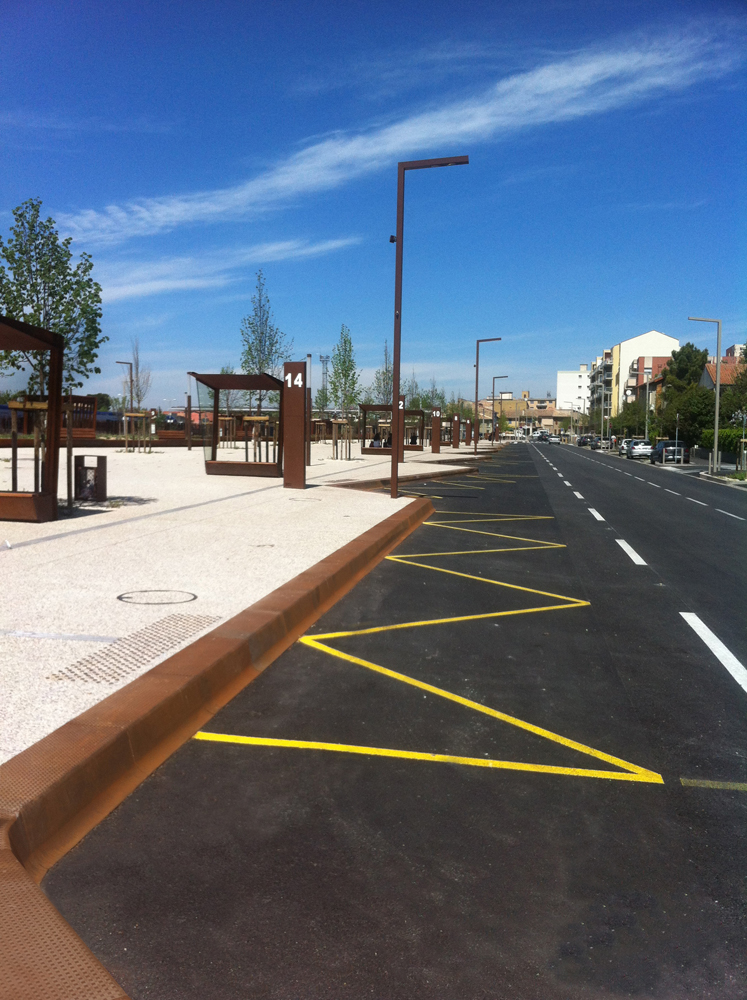

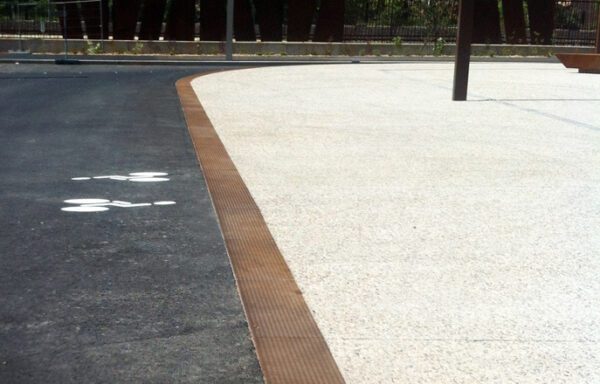

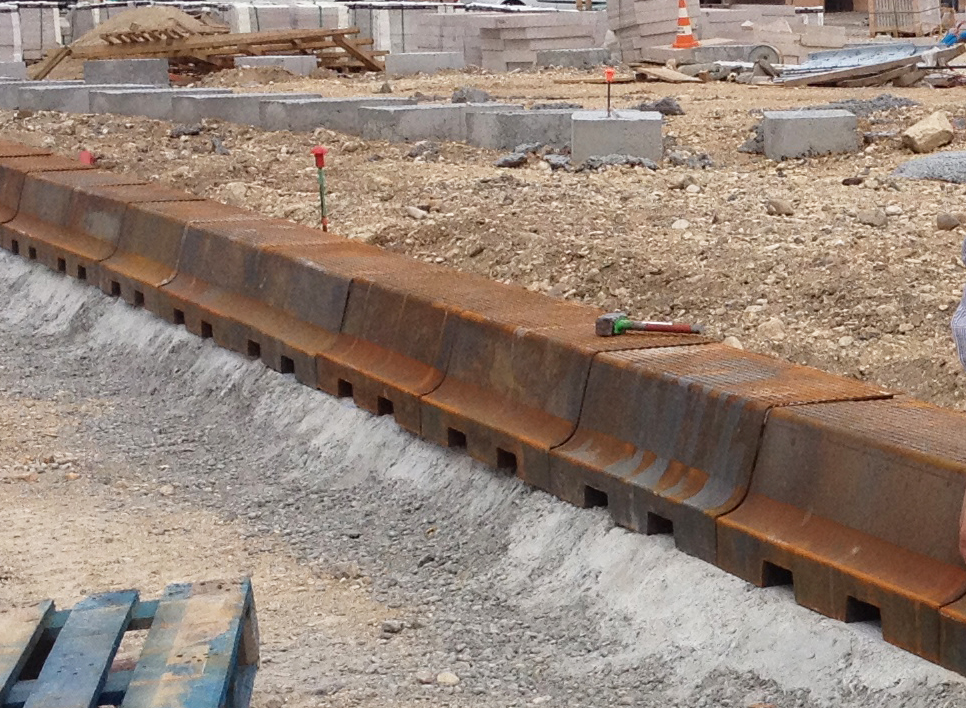

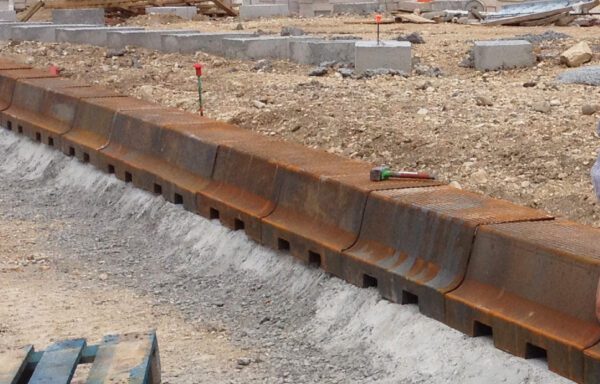

Aménagement du Quartier de la Gare de Carpentras – 2014
